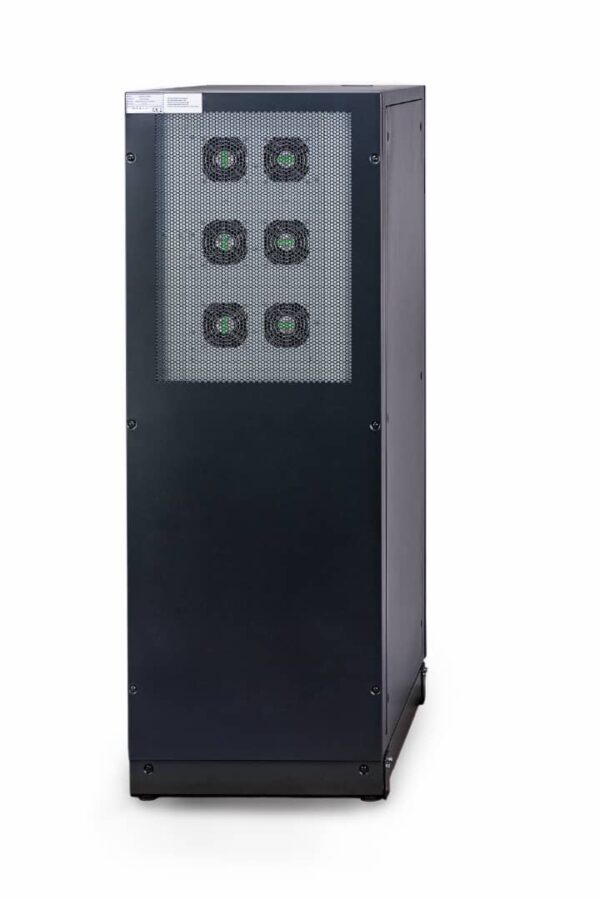

Vectronic C-V Online UPS
Dimensions (W x D x H) mm 10–40kVA: complete with internal battery 60-600kVA: excludes external battery, UPS Module only
Crest Ratio
DC Bus (Vdc)
230 / 400 Vac (-24% to +19.5%)
Input Frequency
LCD Metering
Input: 0.99, Output: 0.9 – 1.0
220/230/240Vac +/- 1.5% 380/400/415Vac +/- 1.5%
50 / 60Hz +/- 0.01% (On Battery)
100 ~ 110% : 60mins 110 ~ 125% : 10mins 125 ~ 150% : 1min >150% : 200ms
Temperature
Relative Humidity
DC Charging Power
Noise (from 1m)
Input Voltage
Power Factor
Output Voltage
Output Frequency
Overload (for 3ph Models)
40 – 70Hz
Voltage, Load %, Frequency, Battery, Events, General Status, Alarm, Etc
0 ~ 40oC
0 ~ 90% Non-condensing
20% of UPS rated capacity
<48dB (<70% load) : 10 – 15kVA <55dB : 10 – 40kVA, ~ RM200kVA 68dB (100% load) : 60 – 150kVA 72dB (100% load) : 200 – 600kVA 55dB (100% load) : RM20-60kVA
Input Tolerance Normal Over-voltage Withstand Over-voltage Normal Under-voltage Withstand under-voltage
+ 10%+ 15% (+20% max limit)- 24% (without de-rating)- 43% (with de-rating)
Weight (Kg)10–40kVA: complete with internal battery60-600kVA: excludes external battery, UPS chassis only
